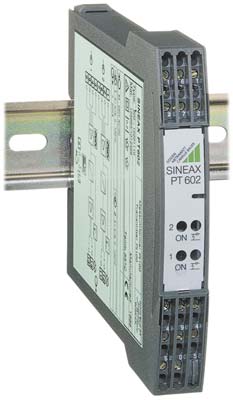

SINEAX PT602
Configurable temperature transducer for PT100, 1 or 2-channel
Measuring transducer for the conversion of the resistance value from a Pt 100 sensor into a linear temperature output signal. Depending upon utilized variant, 2, 3 or 4-wire connection can be used for the Pt 100 sensor.
Measuring ranges can be set as desired with DIP switches and potentiometers.
Measuring ranges can be configured as desired with DIP switches and potentiometers Indication of open-circuit sensor or short-circuit with red LED Electrical isolation between measurement input, measurement output and auxiliary power Power supply: integrated AC-DC power pack with large tolerance range Housing: S17 housing for top-hat rail or wall mounting
