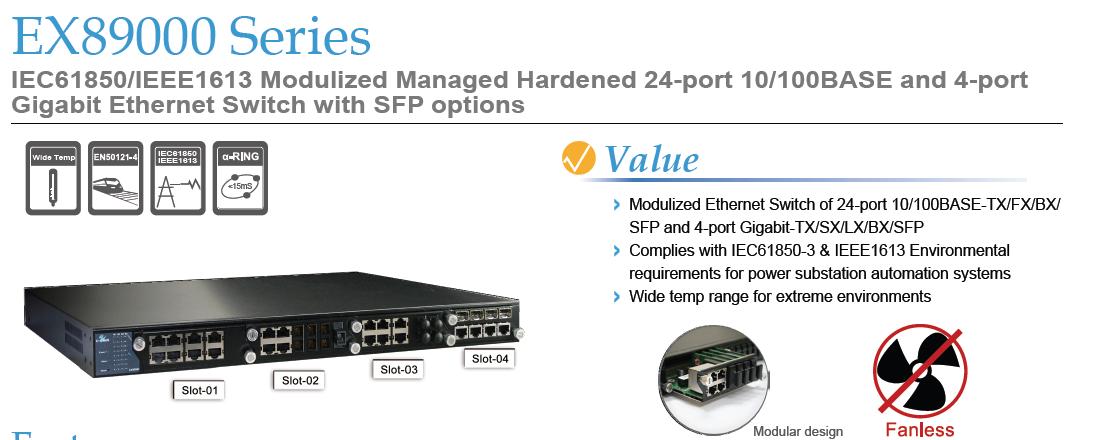

EX89000 Series
IEC61850/IEEE1613 Modulized Managed Hardened 24-port 10/100BASE and 4-port
Gigabit Ethernet Switch with SFP optionsEX89000 Series
IEC61850/IEEE1613 Modulized Managed Hardened 24-port 10/100BASE and 4-port
Gigabit Ethernet Switch with SFP options

Complies with EN50121-4 Railway application environmental
Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
IP Multicast Filtering through IGMP Snooping V1, V2 & V3
Supports port-based VLAN and IEEE802.1Q VLAN Tagging
and GVRP
IEEE802.1p QoS with four priority queues
MAC-based trunking with automatic link fail-over
RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web
Browser, and TFTP Management
Supports Command Line Interface in RS-232 Console
Supports IEEE802.1x Security

Bandwidth Rate Control
Per-port programmable MAC address locking
Up to 24 Static Secure MAC addresses per port
Port mirroring
Supports NTP
1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-
Negotiation, Auto-MDI/MDIX
Full wire-speed forwarding rate
-40°C to 75°C (-40°F to 167°F) operating temperature range,
tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Model Name Description Slot-1 Slot-2 Slot-3 Slot-4 .
M89800-000 8-Port 10/100BASE TX √ √ √
M89620-W00 6-Port 10/100BASE TX + 2-Port 10/100BASE FX √ √ √
M89420-W00 4-Port 10/100BASE TX + 2-Port 10/100BASE FX √ √ √
M89060-W00 6-Port 10/100BASE FX √ √ √
M89240-W00 2-Port 10/100BASE TX + 4-Port 10/100BASE FX √ √ √
M89440-W00 4-Port 10/100BASE TX + 4-Port 10/100BASE FX √ √ √
M89004-0XY 4-Port 10/100/1000BASE √
