新汉（AFC）自动售检票设备专用机: NISE 1000 系列
发布时间：2009/4/7 15:49:57 修改时间：2009/4/7 15:47:18 浏览次数：1535

新汉（AFC）自动售检票设备专用机: NISE 1000 系列

NISE 1000 系列是新汉专为智能交通的自动售检票系统而设计的无风扇专用机，已广泛应用于地铁，轻轨，铁路和机场的闸机和ATM系统。

无风扇设计的NISE 1000 系列是高可靠性能的行业专用产品，适用需求可靠性，稳定性并长时间作业环境。无风扇全密闭的机构设计，机箱外壳象一个巨大的散热器可以快速转换系统热量，确保恶劣苛刻环境下（如高低温，潮湿，多粉尘）系统的稳定运行。主板I/O接口的一体化板载设计，确保系统在振动的环境中可靠运行。采用高性能低功耗处理器，可应因不同应用而选用从Celeron? M 600 MHz 到 Pentium? M 1.8GHz CPU, NISE 1000 系列多达48路 DIO (24路数字量输入和24路数字量输出)与周边传感器连接，如闸机控制，14路串口便利连接周边串口设备，例如自动售票机和自动售检票机。同时配置的PCI/PC 104扩展槽，增强系统的扩展性，内置板载的NVRAM确保计算机突然断电时重要数据的不丢失。

应用

产品规格

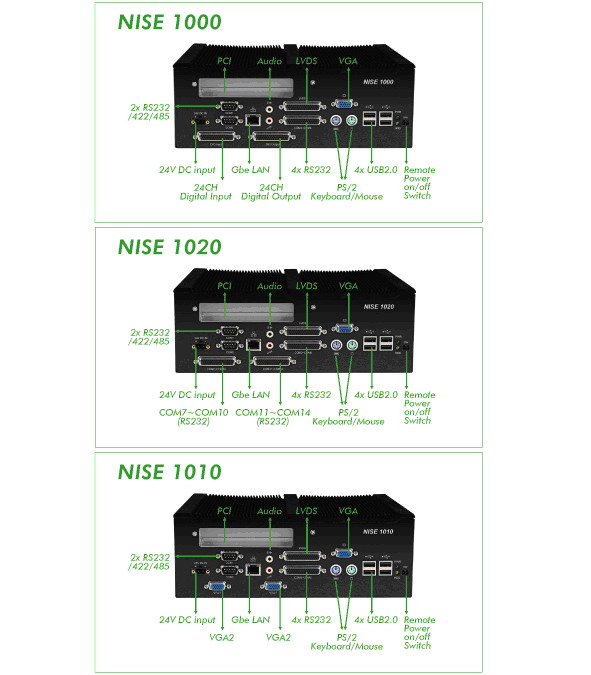

集成丰富的I/O接口, NISE 1000 系列是自动售检票系统的专用产品，闸机，自动售检票机，半自动查询机等。

规格说明：

Model	NISE 1000	NISE 1000-C65	NISE 1020	NISE 1010
CPU	Intel? Pentium? M / Celeron? M	on-board Intel? Celeron? M 600	Intel? Pentium? M / Celeron? M	Intel? Pentium? M / Celeron? M
Chipset	Intel?910GMLE/ICH6M	Intel?910GMLE/ICH6M	Intel?910GMLE/ICH6M	Intel?910GMLE/ICH6M
Max. Memory	1GB DDR2	1GB DDR2	1GB DDR2	1GB DDR2
HDD Space	1x 2.5" HDD bay	1x 2.5" HDD bay	1x 2.5" HDD bay	1x 2.5" HDD bay
CF Socket	1 (Internal)	1 (Internal)	1 (Internal)	1 (Internal)
VGA	1	1	1	3 (Two independent display only)
LVDS	1	1	1	1
USB	4	4	4	4
RS232	4	4	12	4
RS232/422/485	2	2	2	2
NVRAM	Yes	Yes	Yes	Yes
Digital I/O	-	-	Input 24ch/Output 24ch	-
LAN Ports	1 x Gbe	1 x Gbe	1 x Gbe	1 x Gbe
Audio	Mic-in & Line-out	Mic-in & Line-out	Mic-in & Line-out	Mic-in & Line-out
Power Input Range	DC 24V	DC 24V	DC 24V	DC 24V
Power Supply Adapter	Option	Option	Option	Option
Expansion	1x PCI	1x PCI	1x PCI	1x PCI
Dimension (WxDxH)	260x197x98.7	260x197x98.7	260x197x98.7	260x197x98.7

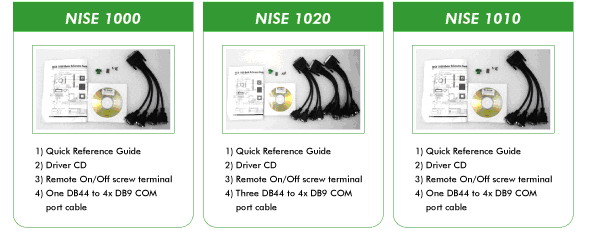

配件

产品特点

- 一体化和高可靠的解决方案

- 适用多种CPU：从 Celeron? M 到 Pentium? M
- 宽操作温度：-15°C ~ 60°C 无风扇运行
- 专为 AFC 系统量身定制的单板设计
- 提供 ATX 和 AT 电源模式可选
- 10/100/1000 网络，并支持 PXE & Wake-on-LAN功能
- 24V DC 输入

订购信息

NISE 1000(P/N:10J00100000X0)	Support Intel Pentium? M/ Celeron? M processors Fan-less bare-bone system with one PCI expansion, 24Ch Digital Input and 24Ch Digital Output
NISE 1000-C65(P/N:10J00100002X0)	On-board Celeron? M 600MHz / 512KB L2 bare-bone system with one PCI expansion, 24Ch Digital Input and 24Ch Digital Output
NISE 1010 (P/N:10J00101000X0)	Support Intel Pentium? M/ Celeron? M processors Fan-less bare-bone system with one PCI expansion
NISE 1020 (P/N:10J00102000X0)	Support Intel? Pentium? M/ Celeron? M processors Fan-less bare-bone system with one PCI expansion and 14 x COM ports
