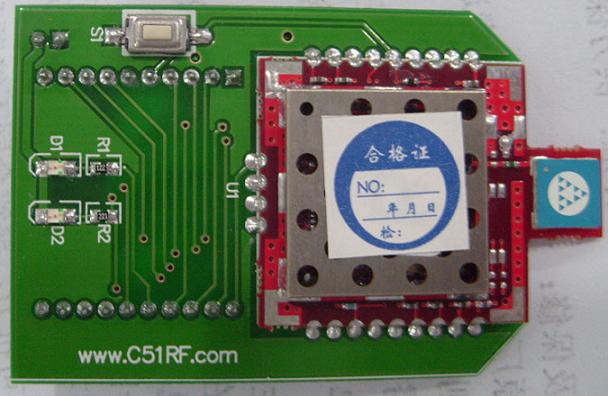

CC2430长距离模块主要参数：
|
功能 |
参数 |
备注 |
|
Frequency |
2400-2483.5 MHz |
|
|
RF Data Rate |
250Kbps |
|
|
Serial Interface Options |
3V TTL |
|
|
Serial Interface Data Rate |
Up to 115.2Kbps |
|
|
Variable Output Power |
+10 to +20dBm |
|
|
Power Consumption
Tx
Rx
Standby
Sleep
Hibernate |
140mA @3.3V，+18dBm
27mAA@3.3V
<=300uA
<=1uA
<=0.7uA |
|
|
Coonducted |
|
|
|
|
|
|
|
|
|
Security |
128 bit AES&SSP |
|
|
Sensitivity (BER 10) |
-99dB |
Typical |
|
Voltage |
3.0-3.5V |
|
|
Indoor Range |
200 meters |
|
|
Outdoor Range |
4.8 kilometers |
可视 |
|
Temperature |
-40 to +85℃ |
|
|
Dimensions |
~25.4 X 34.3 X 5.5 mm |
|
|
Antenna |
U.FL connector or chip antenna |
|
中短距离CC2430模块
|
功能 |
参数 |
备注 |
|
Frequency |
2400-2483.5 MHz |
|
|
RF Data Rate |
250Kbps |
|
|
Serial Interface Options |
3V TTL |
|
|
Serial Interface Data Rate |
Up to 115.2Kbps |
|
|
Variable Output Power |
11dBm |
|
|
Power Consumption
Tx
Rx
Standby
Sleep
Hibernate |
160mA @3.3V，+11dBm
27mA@3.3V
<=300uA
<=1uA
<=0.7uA |
|
|
Coonducted |
|
|
|
|
|
|
|
|
|
Security |
128 bit AES&SSP |
|
|
Sensitivity (BER 10) |
-89dB |
Typical |
|
Voltage |
3.0-3.5V |
|
|
Indoor Range |
100 meters |
|
|
Outdoor Range |
0.8kilometers |
可视 |
|
Temperature |
-40 to +85℃ |
|
|
Dimensions |
~62 X 42 X 62 mm |
|
|
Antenna |
SMA connector or chip antenna |
|
注：
参数表内数据为实验室测试数据。实现应用可能有差别。
长距离CC2430模块现场测试通信距离为1Km。
中短距离CC2430模块现场测试通信距离为300-400m。
此模块价格为360元/块
